Description

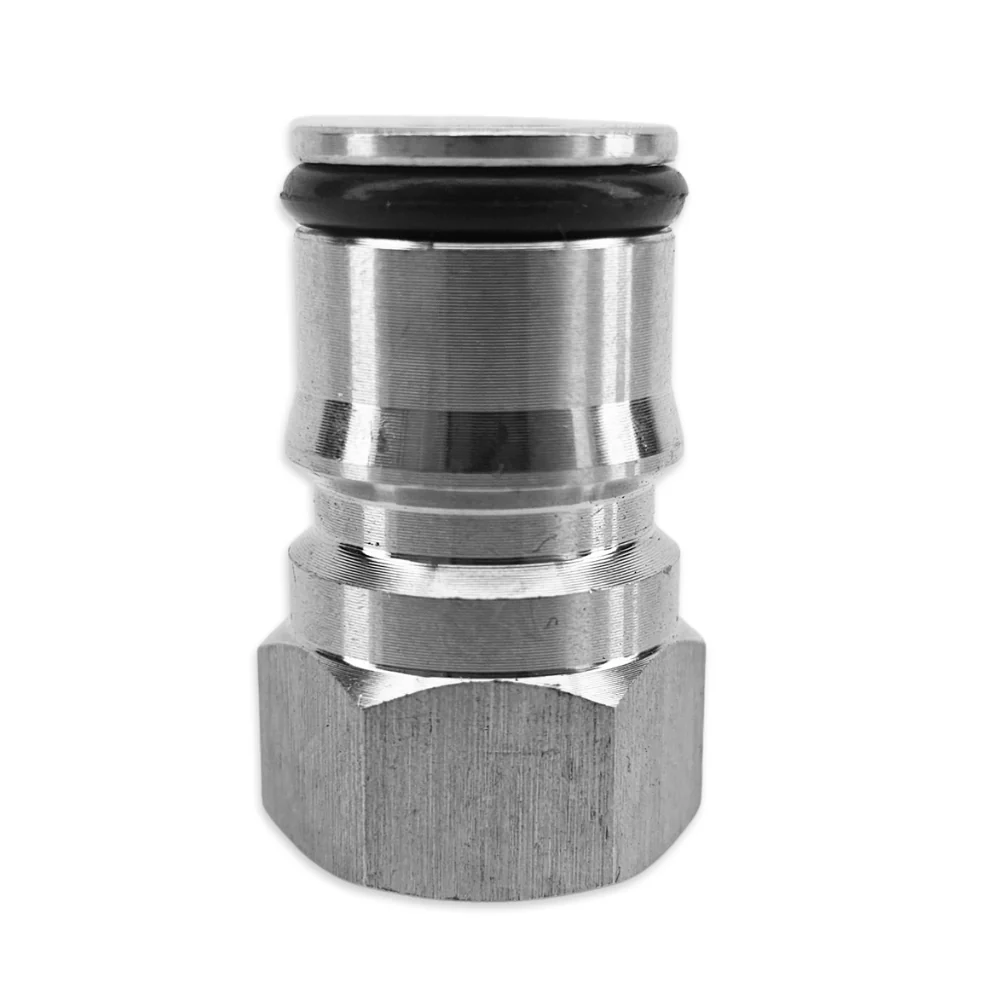

The Ball Lock Keg Liquid Post – 19/32″ is a replacement liquid-out post for compatible Cornelius-style ball lock kegs.
It features a 19/32″ female thread and includes the post O-ring. However, the internal spring and poppet are not included.
Liquid-Out Ball Lock Post
This post fits the liquid-out side of a compatible ball lock keg. Therefore, it provides the connection point for a liquid ball lock disconnect when dispensing or transferring beverages from the keg.
Gas and liquid ball lock posts are different. In particular, this liquid post has a smooth base without the score or strike marking normally used to identify the gas post.
A liquid ball lock disconnect should only connect to the liquid post. Likewise, a gas ball lock disconnect belongs on the gas post.
Compatible Liquid Disconnects
For a traditional barbed beverage-line connection, use our Ball Lock Disconnect – Black Liquid Barb.
Alternatively, our Duotight 8mm Ball Lock Disconnect – Black/Yellow Liquid provides an integrated 8mm push-in connection for compatible beverage line.
Both disconnects attach directly to this liquid post, giving you a choice between a traditional hose barb or a Duotight push-in connection.
Compatible Ball Lock Kegs
This 19/32″ liquid post suits compatible Cornelius-style ball lock kegs, including our 19L Ball Lock Keg – Stainless Steeland 9.5L Ball Lock Keg – Stainless Steel.
However, keg post threads can vary between manufacturers and older keg designs. Therefore, check the thread on your existing keg before ordering a replacement post.
Post O-Ring Included
The liquid post includes a Ball Lock Keg Post O-Ring – Yellow Liquid.
The O-ring seals around the outside of the post and also provides the sealing surface for the liquid disconnect. As a result, keeping this seal in good condition helps maintain a reliable liquid connection.
Spring and Poppet Not Included
The internal spring and poppet are not included with this replacement post.
These components sit inside the post and form part of the keg valve assembly. Therefore, if your existing spring or poppet also needs replacing, see our Ball Lock Keg Poppet & Spring – LOW2.
Specifications
- Type: Liquid-out ball lock keg post
- Thread: 19/32″
- Thread type: Female
- Post identification: Smooth base without gas score/strike marking
- Includes: Post O-ring
- Spring: Not included
- Poppet: Not included
- Suitable for compatible Cornelius-style ball lock kegs
- KegLand model: KL03056
Key Features
- Replacement liquid-out ball lock keg post
- 19/32″ female thread
- Smooth base identifies the liquid post
- Includes post O-ring
- Compatible with barbed and Duotight liquid disconnects
- Spring and poppet sold separately
- Suitable for compatible Cornelius-style ball lock kegs
- Useful for keg servicing and repairs
For more replacement keg components, explore our Ball Lock Kegs & Spare Parts range.
